Diaphragm Valve

514 Diaphragm Valve Socket Fusion Union PVDF/PTFE/FKM

514 Diaphragm Valve Union PVDF/PTFE/FKM is a valve in PVDF with a FKM seat. · 6 sizes, 20–63, PVDF, Socket Fusion

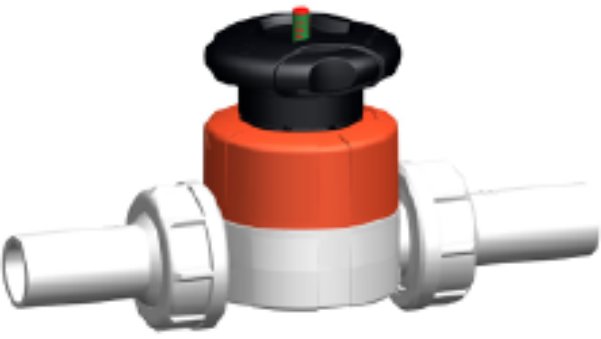

514 Diaphragm Valve Socket Fusion Union PVDF/PTFE/FKM
Manufacturer catalogue image · source PDF

514 Diaphragm Valve Union PVDF/PTFE/FKM is a valve in PVDF with a FKM seat.

Available in 6 sizes from 20 mm through 63 mm, covering metric sizes.

List pricing runs $1,139.30 to $3,056.60 in USD, across part numbers 185514052–185514057.

Sizes & specifications

Sizes & part numbers
Part numberSizeList price (USD)
18551405220$1,139.30
18551405325$1,217.00
18551405432$1,411.20
18551405540$1,935.20
18551405650$2,336.30
18551405763$3,056.60

Part numbers and sizes as published in the current price list. Prices shown are list prices in USD, excluding freight and taxes; project and volume pricing is available on request. Not every size is stocked — confirm availability with your quote.

Need 514 diaphragm valve socket fusion union pvdf/ptfe/fkm for a project?

Give us the sizes and quantities — or send the bill of materials and we'll price all of it.
